Description
Overview:

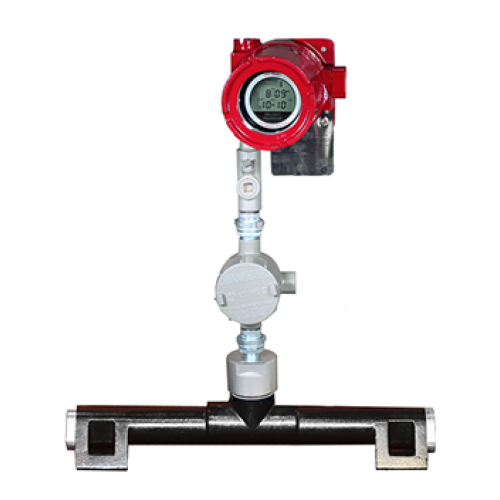

The CD52 Bandit is a non-intrusive pig signaler which uses either permanent magnets or active transmitters mounted onto the pig to detect passage from 0.022 to 45.73 mph (0.01m/s to 20 m/s).
A relay closure on passage allows the Bandit to be interfaced to a wide variety of systems including SCADA, PLC’s, lights, horns, etc.
Options:
Remote Indicator System (RIS):
Provides viewability to a range of 100 meters via 16 super-bright LEDs mounting in the face of the system.
Identification Tags:
Permanent, Engraved 316 Stainless Steel tags affixed to the system.
Sunshade:
316 Stainless Steel sunshade provide basic thermal protection for CD52 enclosures, lowering the operating temperature of the electronics and prolonging their life.
Features:
- Completely non-intrusive to the pipeline
- Designed for direct burial permanent installation with many standard stalk heights and types
- Armored flex cable option available
- Every unit is dual rated for ATEX and IECEx for hazardous location
- Bi-directional pig detection
- Detection of both transmitter and permanent magnet equipped pipeline pigs
- Automatic retention of the 10 most recent pig passage times and dates
- Powered for one full year with two D-Cell alkaline batteries or permanently powered with 24VDC
- Easily bands to pipelines from 2″ to 60″
- Works with wall thicknesses of 1.5 inches [38mm] (contact CDI when W.T. greater than 1″ [25.4mm])
