Description
Overview:
(406 – 1219 MM)

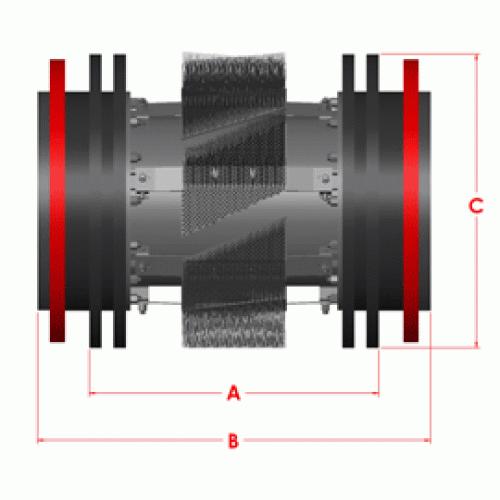

EDX is an economical 6 disc bi-directional pig which offers an
optimum seal and also allows for aggressive cleaning with wear
compensating, spring loaded brushes. The pigs are equipped with durable
guide disks designed to center the sealer discs in the line, forming a
quadruple seal that virtually eliminates product by-pass. Bumper noses
prevent damage to both the pig and in-line auxiliary equipment.
Designed to traverse 3D bends.
Options:
- Transmitter housing
- Block brushes
- Gauging plates
- Magnets
- Bumper noses
Parts
- Sealer discs
- Guide discs
Features:
All Apache 16”-48” pigs are manufactured with by-pass ports.
The ports have threaded plugs that can be removed if by-pass is
required.
