Overview:

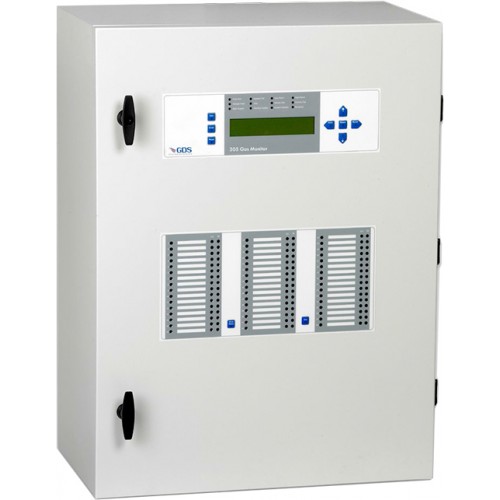

GDS 305
Sequential Gas Sampling System 1-48 Way
The GDS 305 system is designed to monitor gas levels from a number of sample-points, targeted at situations where the positioning of conventional gas sensors may not be practical. This may be due to equipment security, cable routing, access for detector head installation/maintenance, harsh environment or a cost effective means of monitoring designated hazardous areas, typically – tunnels, marine applications, underground/high level voids, process control, landfill, multi storey car parks, brewing, horticulture, superstore multi refridgeration units, Bio-fuel storage compounds.
Specifications
- 1-48 sample points
- Monitor up to 8 gas types
- No sample line purge delay
- Wide range of sensor types
- 4 line alpha/numeric display
- Select-able sample line sequence
- Display of each sample line location
- Easily installed and maintained
- Full indication of all operations
- Event logging / Modbus / RS232 / RS485
- Line blockage and pump fail monitoring
- Variable sample time for optimum cycle time
- High integrity, comprehensive self check fault monitoring
- Centralised one man calibration offers minimum running costs
- Split system operation – optional
- Remote control panel – optional
- Line blockage, blow back – optional
- LED/text indicator panel – optional
- Hazardous area operation – optional
- Auto flood cut off – optional
- Enclosure internal gas monitoring with automatic system shutdown – optional
Sample line multiplier – optional
