Description
Overview:

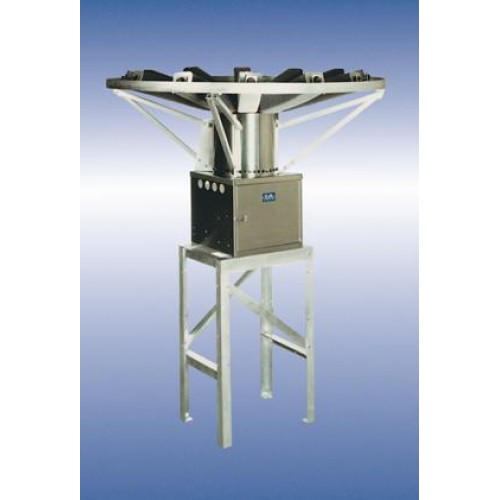

The Model 8550 Thermoelectric Generator is a reliable, low maintenance source of DC electrical power.
Global Thermoelectric’s Model 8550 Thermoelectric Generator contains no moving parts. It is a reliable, low maintenance source of DC electrical power for any application where regular utilities are unavailable or unreliable.
Specifications:
Power Specifications @20°C:
480 Watts @ 12 Volts
550 Watts @ 24 Volts
480 Watts @ 48 Volts
Fuel Consumption:
*All Natural Gas is Std. 1000 BTU/SCF 37.7 MJ/Sm³ gas
Natural Gas:
48.0 m³/day (1695 ft³/day)
Propane:
76.0 l/day (20.1 US gal/day) / 38 kg per day
Max. Supply Pressure:
1724 kPa (250 psig)
Min. Supply Pressure:
207 kPa (30 psig)
Dimensions:
1549 x 1549 x 1016 mm (61 x 61 x 40 inches)
Weight:
102 kg (225 lb)
