Description
Overview:

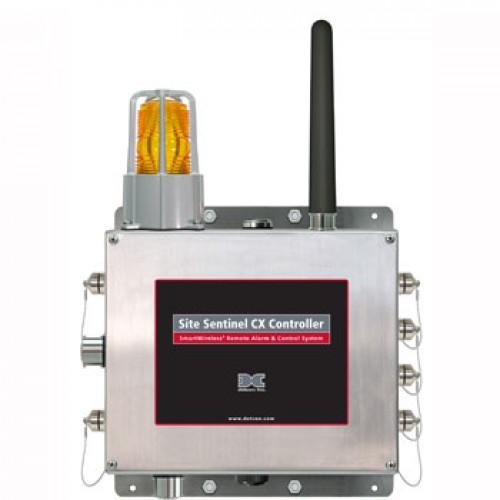

The SmartWireless® Site Sentinel CX Controller is an accessory to the SmartWireless® CXT and is easily and economically deployable in both permanent and temporary installations. The CX wirelessly transmits the data from up to 4 wired gas detectors back to the CXT and includes a battery that powers the radio, alarm devices, and the attached sensors. The Sentinel CX is compatible with Detcon’s Model RXT transceivers. Flexible and expandable, a Site Sentinel network can include up to 32 devices and consist of any combination of wireless and/or wired sensors, one or more Site Sentinel control panels, and alarm warning devices. Options include audio alarm, visual alarm, external alarm port, and up to 4 external wired sensor inputs. Standard features include a power-in port and power switch.The control panel is rated for Class 1, Division 2; Groups B, C, D hazardous areas. Power is provided by an internal rechargeable battery and/or 14 to 30VDC. Operating time is 1-2 months before recharge is required. An optional solar charging panel can be used to extend operating time for virtually any application.
Features:
- Compatible with Detcon RXT transceivers
- Up to 4 wired gas detectors
- Optional strobe & horn
Applications:
- Oil and Gas Drilling Rigs
- Oil and Gas Production Sites
- Wastewater Treatment Plants
- Food and Beverage Processing
- Pump and Paper Mills
