Description
Overview:
(406 – 1219 MM)

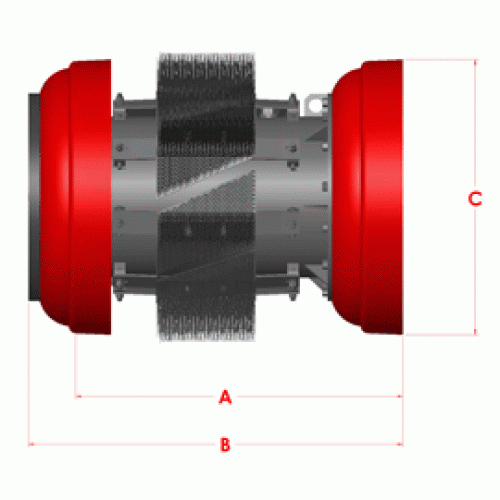

The basic two cup UCX pigs are generally used for cleaning and scraping of pipelines. This pig is also available in three and four cup configurations. By adding cups to the configuration the UC pig provides a positive seal between dissimilar fluids and is typically used for longer distance operations and for light cleaning of pipelines. Cups can be changed or adapted to different configurations as the application dictates.
Designed to traverse 3D bends.
Options:
- Transmitter housing
- Block brushes
- Gauging plates
- Magnets
- Plow blades
Parts
- Series C cups
- Bumper noses
Features:
UCX pigs are equipped with Apache Series C cups manufactured from high quality Reliathane. The large wear surface of the cup promotes longer life while the product pressure keeps the cutting edge firm against the pipe wall. A standard bumper nose prevent damage to both the pig and in-line auxiliary equipment. All Apache 16”-48” pigs are manufactured with by-pass ports. The ports have threaded plugs that can be removed if by-pass is required.
