Description
Overview:
(406 – 1219 MM)

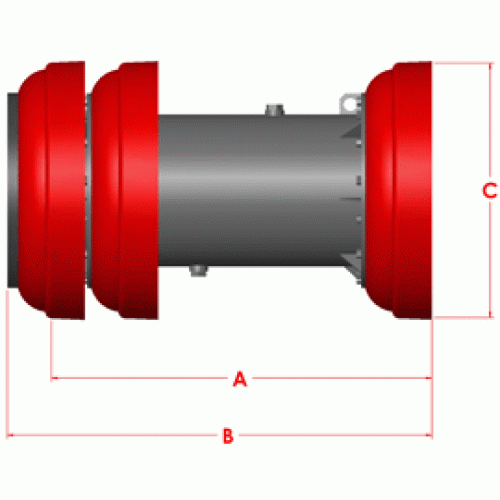

The basic three cup UM pigs are designed for batching of dissimilar fluids and are typically used for longer distance applications. The UM series is available in three versions. The three cup design of this pig provides a positive seal between fluid interfaces and is widely used for light cleaning of pipelines or batching/separation operations.
Designed to traverse 1.5D bends.
Options:
- Transmitter housing
- Gauging plates
- Magnets
- Rattlers
Parts
- Series C cups
- Bumper noses
Features:
UC pigs are equipped with Apache Series C cups manufactured from high quality Reliathane. The large wear surface of the cup promotes longer life while the product pressure keeps the cutting edge firm against the pipe wall. Standard bumper noses prevent damage to both the pig and in-line auxiliary equipment. All Apache 16”-48” pigs are manufactured with by-pass ports. The ports have threaded plugs that can be removed if by-pass is required.
