Description
Overview:
(76 – 356 MM)

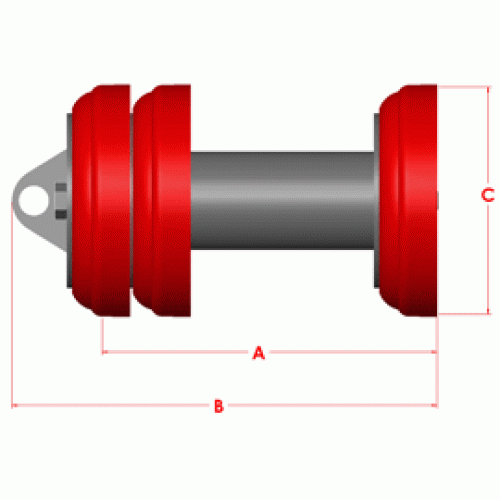

The UC pig is available in three versions. The basic two cup and three cup UC pigs are generally used for batching of dissimilar fluids. Cups can be changed or adapted to different configurations as the application dictates. The configuration of the four cup UC provides positive seal between dissimilar fluids and typically used for longer distance operations and for light cleaning of pipelines.
Designed to traverse 1.5D bends.
Options:
- Gauging plates
- Magnets
Available with UT configuration with internal transmitter housing for 6″ – 14″ pigs.
Parts
- Series C cups
Features:
UC pigs are equipped with Apache Series C cups manufactured from high quality Reliathane. The large wear surface of the cup promotes longer life while the product pressure keeps the cutting edge firm against the pipe wall. Standard bumper noses prevent damage to both the pig and in-line auxiliary equipment.
