Description
Overview:
(406 – 1219 MM)

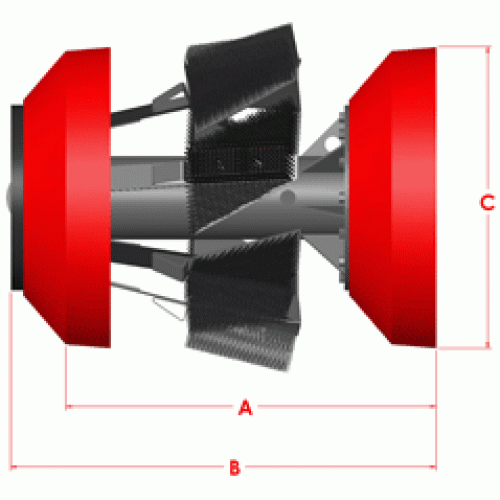

The four cup UMX pigs are generally used for cleaning and scraping of
pipelines. By adding cups to the configuration the UM pig provides a
positive seal between dissimilar fluids and is typically used for longer
distance operations and for light cleaning of pipelines.
Designed to traverse 1.5D bends.
Options:
- Transmitter housing
- Block brushes
- Gauging plates
- Magnets
- Plow blades
Features:
UMX pigs are equipped with Apache Series M cups manufactured from high
quality Reliathane. Pipeline pigs mounted with conical cups can traverse
pipeline anomalies of up to 20% without damage to inline auxiliary
equipment. Standard bumper noses prevent damage to both the pig and
in-line auxiliary equipment. All Apache 16”-48” pigs are manufactured
with by-pass ports. The ports have threaded plugs that can be removed if
by-pass is required.
