Description
Overview:
(76 – 356 MM)

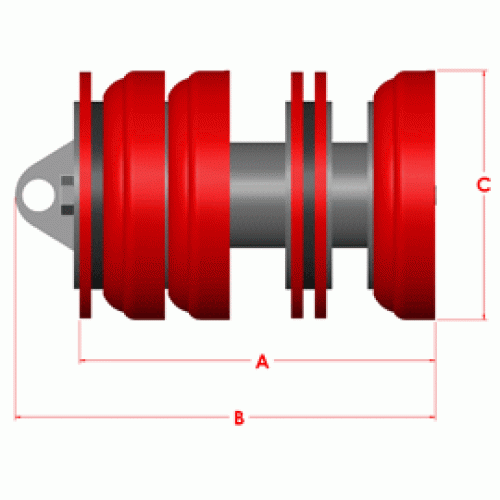

The Apache XF pig comes standard with a combination of three sealing discs and three series C cups, providing a positive seal between dissimilar fluids and scraping compatibility. XF are typically used for longer distance batching operations and for light cleaning of pipelines. Cups and discs can be easily changed or adapted to different configurations as the application dictates.
Designed to traverse 3D bends.
Options:
- Flange and block brushes
- Gauging plates
- Magnets
Available with UT configuration with internal transmitter housing for 6″ – 14″ pigs.
Parts
- Series C cups
- Series C discs
